当前位置:首页 »资讯中心 » 新闻资讯不锈钢门套线包边施工步骤有哪些?

不锈钢门套线包边施工步骤有哪些?

来源:http://www.sddtmt.com/ 浏览:0发表时间:2023-02-25
1.用冲击电钻在门四周大洞眼,并插入木楔。
1. Use an impact drill to drill large holes around the door and insert wooden wedges.
2.将15厘大芯板(或夹板)靠墙侧进行防潮处理(刷光油2遍后在贴珍珠棉)。用钉枪校正固定后,再用铁钉加固。门套线条打底用9厘夹板。打底夹板外侧用实木线条收口。合页位置加板衬固或封两层15厘大芯板。
2. Moistureproof treatment shall be carried out on the 15 cm large core board (or plywood) against the wall side (apply pearl cotton after two coats of varnish). After correction and fixation with nail gun, use iron nails for reinforcement. 9 cm plywood is used for the bottom of door pocket line. The outer side of the backing plywood is closed with solid wood lines. The hinge position shall be lined with plate or sealed with two layers of 15 cm large core plate.
3.门套与门扇相合之处到进门边的侧面用9厘夹板做止口板,止口深度与门的厚度相同。
3. From the joint of the door pocket and the door leaf to the side of the entrance door, use a 9 cm plywood as the seam plate, and the seam depth is the same as the thickness of the door.
4.面板用白乳胶涂匀后贴于打第大芯板及止口板上,并用不锈钢蚊钉适当加固。
4. The panel shall be evenly coated with white latex and then pasted on the second core plate and mouth plate, and properly reinforced with stainless steel mosquito nails.
5.门套线条宽度一般为60mm—80mm.厚度8mm.
5. The width of the door pocket line is generally 60mm-80mm, and the thickness is 8mm

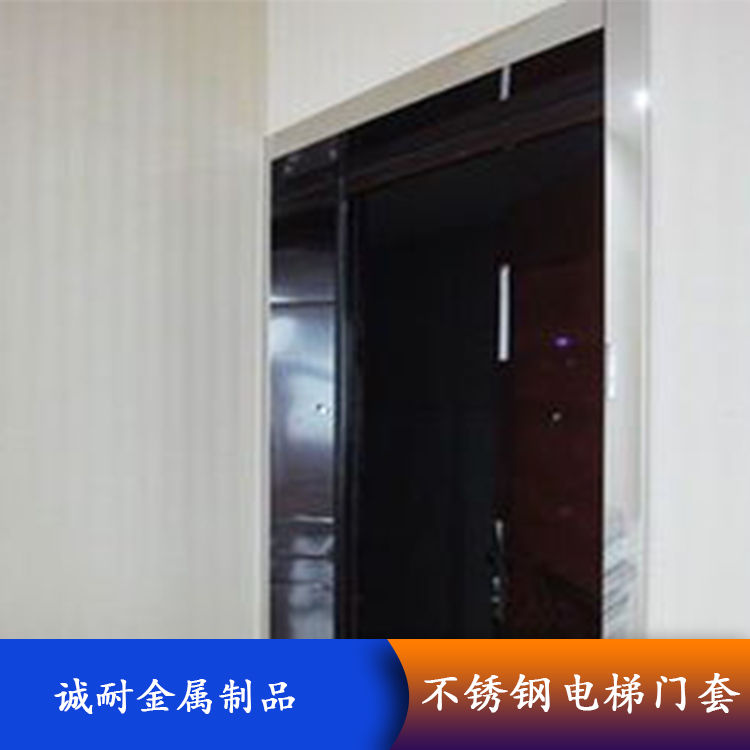

电梯不锈钢门套
6.厨卫门套线条里侧用不锈钢(哑光)线条为宜。
6. It is advisable to use stainless steel (matt) lines on the inner side of the kitchen and bathroom door pocket lines.
7.门套及门窗套垂直、水平误差不超过2mm(2m以上不超过3mm)对角线误差不超过3mm(2m以上不超过5mm).
7. The vertical and horizontal error of door jambs and door and window jambs shall not exceed 2mm (more than 2m and not more than 3mm) and the diagonal error shall not exceed 3mm (more than 2m and not more than 5mm)
8.门套两侧墙与门套之间距离在门套线条不能压住接缝时,宜先用水泥砂浆挂钢钉封平(用板定模灌浆)干燥后方可封板打第,在门套线条能压住接缝时可用板封龙骨结构。
8. When the distance between the walls on both sides of the door jamb and the door jamb is that the door jamb line can not press the joint, it is advisable to use cement mortar to hang steel nails to seal it (use plate fixed mold grouting) and dry it before sealing the plate. When the door jamb line can press the joint, the plate can be used to seal the keel structure.
9.单面门套用9厘板打底(凸窗应注意窗帘位置)。其他与双面门套同。入户大门可封单边实木线条门套。
9. Single-sided door jamb is bottomed with 9 cm plate (pay attention to the position of curtain for convex window). Others are the same as double-sided door jambs. The entrance door can be sealed with single-sided solid wood line door pocket.
10.窗套不宜包台面,台面用大理石铺贴(防盗网宜在窗套面板封后制作)。单面门套:在原来有门的基础上起装饰作用,不起承受门的力量。
10. The window cover should not cover the table top, and the table top should be paved with marble (the anti-theft net should be made after the window cover panel is sealed). Single-sided door jamb: It is used for decoration on the basis of the original door, and cannot bear the power of the door.
