安装电梯门套时需要注意的地方有哪些?

来源:http://www.sddtmt.com/ 浏览:0发表时间:2022-05-20
电梯在现代生活中是为大家提供了很大的便利,目前6层以上的建筑一般都装有电梯。而我们在乘坐电梯的时候会注意到电梯门的不锈钢门套,它是用来保护电梯不受腐蚀、破损、脏污等的侵袭。在安装不锈钢电梯门套的时候有一些需要注意的地方,小编来给大家分享一下。
Elevators provide great convenience for everyone in modern life. At present, buildings with more than 6 floors are generally equipped with elevators. When taking the elevator, we will notice the stainless steel door pocket of the elevator door, which is used to protect the elevator from corrosion, damage, dirt and so on. When installing the stainless steel elevator door pocket, there are some points that need to be paid attention to. Xiaobian will share them with you.
a:不锈钢电梯门套安装注意事项如下:
a: Precautions for installation of stainless steel elevator door pocket are as follows:
1、材料厚度需不低于1.2厚(实际厚度不得小于1.08)。
1. The material thickness shall not be less than 1.2 thick (the actual thickness shall not be less than 1.08).
2、需注意用竖料来收口门头横料。
2. Pay attention to use vertical materials to close the door head and horizontal materials.
3、注意制作基层一定要小于门套包边尺寸5mm左右,有足够的空间安装和打胶。
3. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, and there is enough space for installation and gluing.
4、门头板宽度要略小于竖料宽度1-2毫米,收口才美观。
4. The width of the door head plate should be slightly less than the width of the vertical material by 1-2mm, and the closing is beautiful.
5、一般门头板和立面包板对接处的阴角处不建议用胶水收口,这样既美观又能检验门套安装质量。
5. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is not only beautiful, but also can check the installation quality of the door pocket.

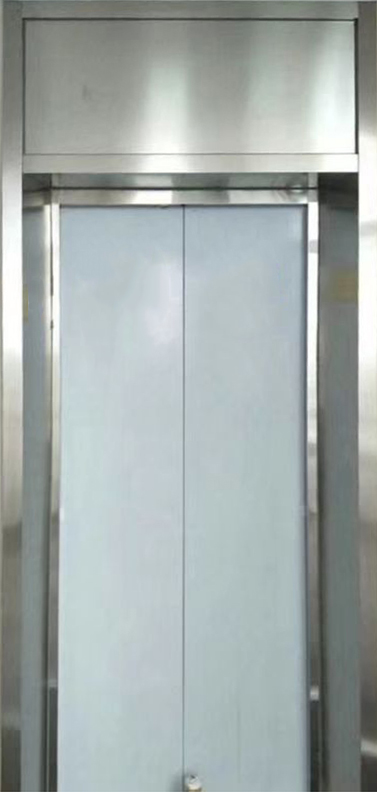

不锈钢电梯门套
Stainless steel elevator door pocket
b:普通的45°拼接门套做法,常规注意事项如下:
b: For the common 45 ° splicing door pocket, the general precautions are as follows:
1、材料厚度需..1.2厚(实际厚度不得小于1.08)。注意对角处不能有错位,旱接点一定要处理在隐蔽位置。
1. The material thickness needs to be 1.2 thick (the actual thickness shall not be less than 1.08). Note that there shall be no dislocation at the diagonal, and the dry contact must be handled in a concealed position.
2、注意制作基层一定要小于门套包边尺寸5mm左右,有足够的空间安装和打胶。
2. Note that the base course must be about 5mm smaller than the edge wrapping size of the door pocket, and there is enough space for installation and gluing.
3、一般门头板和立面包板对接处的阴角处不建议用胶水收口,这样既美观又能检验门套安装质量。安装质量粗劣,阴角打胶遮盖瑕疵,不建议使用。
3. Generally, it is not recommended to close the internal corner of the butt joint between the door head plate and the facade cladding plate with glue, which is not only beautiful, but also can check the installation quality of the door pocket. The installation quality is poor, and the internal corners are glued to cover the defects. It is not recommended to use.
